A 10 inch LED light bar with DRL is designed to provide extra visibility in the dark, on rough terrain or during work tasks. In practice, however, unclear performance specifications, unsuitable mounting points and a lack of information about vehicle electrics often lead to the wrong purchase. This is especially true for SUVs, pick-ups, trucks, ATVs and off-road vehicles, so it is worth checking a few technical details carefully before buying.
A high lumen figure initially only describes the theoretical amount of light. For practical illumination, light distribution, optics, lux value and mounting height are also crucial. A spot light focuses the beam far ahead, while a flood light illuminates the near area more broadly. A combo version combines both characteristics.
A claim of “970 metres range” should therefore always be considered in relation to the measurement value. With the 33 Series 10" Dual-Color DRL LED Light Bar, this distance is given at 1 lux according to the product description. That is a technical reference point, not a guarantee of identical visibility in rain, fog, dust or with a dirty lens.
IP68 describes a defined level of protection against dust and temporary submersion under conditions specified by the manufacturer. According to the product description of the 33 Series Light Bar, the protection applies to depths of up to 1 metre for 30 minutes. This does not mean that every mounting position, pressure washing or permanent underwater use is automatically suitable.
With an IP68 LED headlight solution, connectors, fuse holders and cable glands also remain important weak points. These components must also be protected and properly sealed.
An LED auxiliary headlight can be useful for off-road tracks, private roads, construction sites or campsites. However, separate regulations apply for use on public roads. An integrated DRL or position light function does not automatically mean the light bar is approved for use as daytime running lights or main beam headlights on a car.
Before installation, you should therefore check:
Different conditions apply for pure off-road use compared with driving on public roads in Germany.
A vehicle with a 12-volt electrical system requires a light suitable for that voltage. Trucks, certain work vehicles and larger commercial vehicles may have a 24-volt electrical system. A light bar with explicitly stated 12-V-24-V support is more versatile, but does not replace checking the fuse, relay and cable cross-section.
When connecting, the positive and earth cables should be correctly sized. A supplied wiring harness with relay and fuse can simplify installation. The fuse must match the actual power consumption and cable cross-section.
A dual-colour LED light bar with white driving light and amber DRL can cover different usage situations. However, the light colour alone says nothing about legal usability on the road.
Die-cast aluminium can help with heat dissipation. Cooling fins, however, need sufficient airflow and must not be completely covered during installation. The 33 Series Light Bar is specified with a 6063 aluminium housing with cooling fins. Additionally, a lifespan of over 50,000 hours and a pressure equalisation valve are mentioned. These details come from the product description and should be understood as manufacturer information.
Stable brackets are essential for mounting. Adjustable brackets with up to 45 degrees of tilt can make alignment easier. Before buying, you should check the width, bolt spacing, space behind the grille and possible vibration. This is especially important for an LED light bar for SUV and ATV that is to be mounted on the roof, bumper, grille or roll bar.
Why this product suits the profile: The light bar combines white driving light, amber DRL and position light in one housing. According to the product description, it offers IP68 classification, 12-V-/24-V compatibility and two bracket options.
The description not only states a brightness value, but also provides the 1-lux reference for the range specification, along with details on optics, cooling and mounting.
Dual-colour function, IP68 housing, aluminium cooling, DT wiring harness with relay and fuse, plus adjustable brackets.

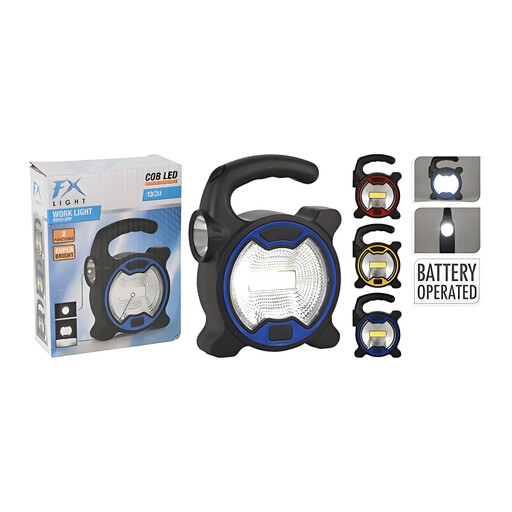

Why this product suits the profile: For occasional tasks, camping, repairs or the boot, this compact light measuring 9 × 13 cm is easier to transport than a vehicle light bar.
The function is limited to portable work lighting. This avoids confusing a small light with a permanently mounted off-road light bar.
80 lumens from the front light, 180 lumens from the side light, ABS housing and compact dimensions. The colour variant is selected at random.
Why this product suits the profile: The light is described as suitable for 12-V and 24-V vehicles and can be mounted on the bumper, grille or roll bar according to the supplier. This suits ATV, 4x4, SUV and truck applications.
The description states the operating voltage, light pattern options and mounting locations. This allows buyers to check in advance whether the light suits their electrical system and intended use.
Spot, flood and combo light, DRL function, IP68 rating and a temperature range of -40 °C to 85 °C according to the product description.
We have put together a complete, regularly updated list of products that fully meet these strict selection criteria and the safety regulations in force in the EU.
Before fitting an LED work light 12V 24V solution, the mounting position and cable routing should be decided. The light beam must not impair oncoming traffic, cameras, sensors or the driver's vision. A relay relieves the original light switch, while a suitable fuse protects the power cable.
For DRL and position light wires, you need to distinguish between ignition-positive, a separate switch and the indicator signal. The exact circuit depends on the vehicle and the wiring harness. If you have no experience with vehicle electrics, you should have the connection carried out by a suitably qualified workshop.
That depends on the design, approval mark, mounting and wiring method. A DRL function alone does not constitute automatic approval. Before installation, you should check the marking on the specific product and, if in doubt, consult a specialist workshop or the relevant testing authority.
First, the on-board voltage and power consumption must match. Typically, the battery, fuse, relay, switch and earth cable are connected. DRL or position light wires can be connected separately to the ignition or a control signal. The supplied instructions are definitive.
The lifespan depends on factors including temperature, vibration, voltage, moisture and usage. Some product descriptions state more than 50,000 hours. This is a manufacturer's specification and not a blanket guarantee for every operating condition. Regular inspection of brackets, connectors and seals remains advisable.
