Upgrading from halogen to LED headlight bulbs is a technical modification driven by specific performance metrics. The 9012 socket type, also known as HIR2, is used in numerous vehicle models for either low or high beam applications. Switching to an HIR2 LED bulb typically aims to improve light output, colour temperature, and operational lifespan. This article analyses the key technical parameters to consider when selecting an automotive LED retrofit kit.
Selecting a suitable LED bulb requires an evaluation of objective technical features. Compatibility with the vehicle and adherence to the original bulb's geometric dimensions are fundamental prerequisites.
Luminous flux, measured in lumens (lm), quantifies the total amount of visible light emitted by a source. Higher lumen values correlate with greater brightness. However, the absolute value is not the only critical factor; the beam pattern is equally important. A high-quality 9012 LED low beam must project light onto the road with precision, without dazzling oncoming traffic. This is achieved through a design that precisely mimics the filament position of a halogen bulb (a 1:1 design).
Colour temperature, measured in Kelvin (K), describes the colour of the light. While conventional halogen bulbs produce a yellowish, warm light of around 3200 K, the standard for LED retrofit bulbs is often 6000K white. This daylight-like, cool white light can improve the visibility of road markings and obstacles at night by enhancing contrast.
LED chips generate heat during operation, which must be dissipated efficiently to maintain performance and lifespan.
Modern vehicles monitor headlight bulb function via a Controller Area Network (CAN bus). Because LEDs have lower power consumption than halogen bulbs, the system may incorrectly detect a faulty bulb and display an error message on the dashboard. CANbus-ready LED bulbs have integrated drivers or resistors that prevent this issue in the vast majority of vehicles (often cited as 99% compatibility).
A 1:1 size ratio compared to the original halogen bulb is a critical factor for a straightforward installation. Plug-and-play bulbs without external drivers or oversized heat sinks fit directly into the headlight housing and require no modifications to the dust cover.
The following products have been selected based on their technical specifications and design features.

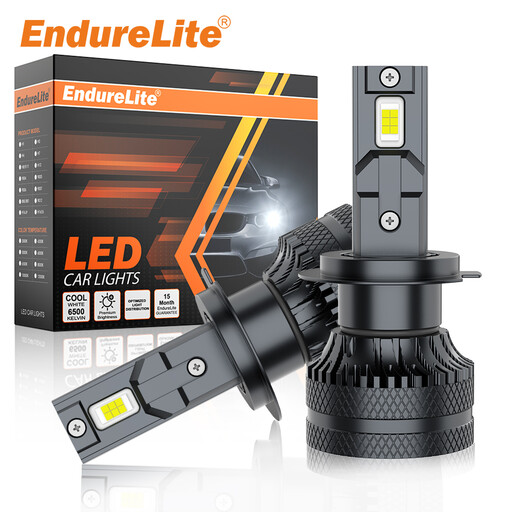

Product Analysis: This model from ENdureLite is distinguished by its exact 1:1 size compared to a standard halogen bulb. This significantly simplifies installation and ensures correct beam geometry, which helps to reduce glare. The active cooling system, featuring a 10,000 RPM fan, maintains a stable operating temperature.
Key Features:
Best Suited For: Vehicle owners who prioritise a quick and hassle-free upgrade without modifying the headlight housing, and who are looking for a balanced increase in brightness.

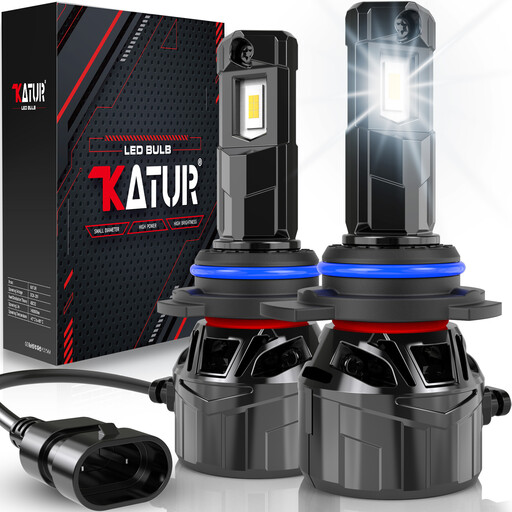

Product Analysis: The 120W KATUR model is engineered for maximum light output. At 30,000 lm per pair, it offers a significant increase in brightness. To dissipate the resulting heat, it employs a powerful active cooling system with a 16,000 RPM turbo fan and a copper heat pipe. Despite its high performance, it maintains a compact 1:1 design.
Key Features:
Best Suited For: Users focused on achieving maximum road illumination, whose vehicle headlights have sufficient space for the active cooling system's airflow.

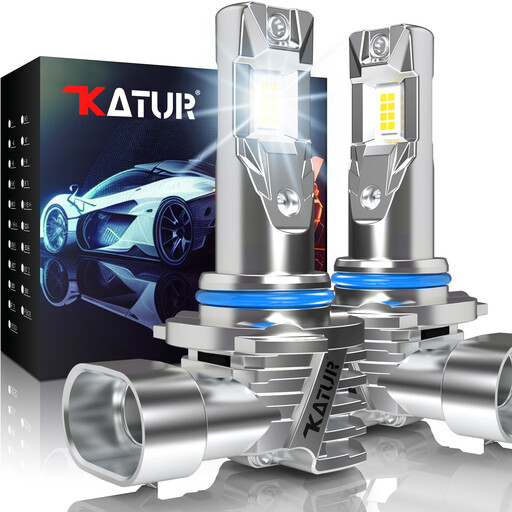

Product Analysis: This variant from KATUR delivers a high light output of 26,000 lm while completely forgoing a fan. Cooling is handled passively by a heat sink made of 6063 aviation-grade aluminium. This results in completely silent operation and eliminates the potential point of failure of a fan. The compact, all-in-one design facilitates installation in tight headlight housings.
Key Features:
Best Suited For: Ideal for vehicle owners who prefer silent operation or whose headlight housings have limited space for heat dissipation.
If the models presented here do not exactly meet your requirements, or if you wish to compare other technical configurations, you can find a broader selection in our main category.
Find More HIR2 Headlight Bulb Models Here
1. Are 9012 HIR2 LED bulbs street legal? The use of 9012 automotive headlight bulbs as LED retrofits on public roads is subject to strict legal regulations in many regions. For example, in Germany, the Road Traffic Licensing Regulations (StVZO) require lighting components to have an ECE approval specific to the vehicle model and headlight type. Many of the LED retrofit kits presented here may not have such general approval for street use in all regions and are primarily intended for motorsport or off-road use. Before purchasing and installing, check the specific legal approval status for your vehicle and region.
2. What does "CANbus-ready" mean for an HIR2 LED bulb? CANbus-ready means the LED bulb is equipped with an integrated electronic system (a driver or resistor). This system simulates the electrical load of a conventional halogen bulb. This prevents the vehicle's onboard computer from misinterpreting the more energy-efficient LED as "faulty" and displaying a dashboard error message or causing flickering.
3. Can I simply replace HIR2 halogen bulbs with LEDs? Technically, yes, provided the LED bulb is designed as a plug-and-play model. Models with a 1:1 design that exactly replicate the size and socket of the original halogen bulb can typically be swapped without tools or modifications. The old halogen bulb is removed, and the new LED bulb is inserted and connected.
