Gaming PC Case Buyer's Guide

By Joybuy Product Recommendation Officer, August 30, 2026

Choosing a new gaming PC case can quickly become overwhelming. The market is filled with models that promise impressive aesthetics and supposedly high performance. But behind shiny glass panels and glowing fans, there are often costly compromises that only become apparent after the purchase. An unsuitable case can not only make assembly difficult but also throttle the performance of expensive components due to heat buildup.

This guide will help you identify common pitfalls and make an informed decision. We focus on the technical parameters that truly matter, ensuring your next PC not only looks good but also runs reliably and cool.

Common Pitfalls When Buying a Case

Before we dive into the important specifications, let's highlight three common issues that frequently lead to disappointment during the selection process:

1. The "Airflow Trap": Many cases advertise an optimised PC case airflow but feature a closed-off front panel made of glass or solid plastic. Such designs drastically restrict fresh air intake, which can lead to higher temperatures and CPU/GPU performance throttling (thermal throttling). A perforated or mesh front is often the more functional choice for power-hungry systems.
2. The Compatibility Illusion: A case may be labelled as an ATX PC case, but that doesn't guarantee that modern, oversized graphics cards or tall tower CPU coolers will actually fit. The exact millimetre specifications for maximum GPU length and CPU cooler height are crucial but are often overlooked.
3. The RGB Chaos: An RGB PC case with pre-installed fans seems attractive. It becomes problematic when these fans use proprietary, non-standard connectors. The result: the lighting cannot be synchronised with motherboard software, and expansion is only possible with expensive adapters or controllers from the same manufacturer.

What Really Matters: The Core Parameters

To avoid the problems mentioned above, you should focus on three core technical areas. These form the foundation for a functional and future-proof system.

1. Form Factor and Actual Internal Dimensions

The form factor indicates the basic size and compatibility with the motherboard. The most common formats are:

• ATX: The standard for most gaming PCs, offering a good balance of space and expansion options.
• Micro-ATX (mATX): A more compact variant that offers fewer PCIe slots but fits into smaller cases.
• Mini-ITX (ITX): Designed for very small systems, often with compromises in connectivity and cooling potential.

However, more important than the form factor alone are the maximum dimensions for your components. Before buying, be sure to check these three values in the case's technical specifications:

• Maximum GPU Length (in mm): Modern high-end graphics cards can be over 340 mm long. Measure your card or check its specifications.
• Maximum CPU Cooler Height (in mm): Large air coolers like the Noctua NH-D15 or be quiet! Dark Rock Pro often need over 165 mm of vertical clearance.
• Maximum PSU Length (in mm): Especially in compact Mid-Tower Case models, the space for the power supply and its cable management can be limited.

2. Cooling Concept: Airflow and Water Cooling

A well-designed cooling concept is the foundation of a stable gaming system. There are two main approaches here:

• High Airflow: Cases with mesh fronts and tops allow for maximum air exchange. They are ideal for systems that are primarily air-cooled and keep components cool even under load.
• Water Cooling Compatibility: If you are planning an All-in-One (AiO) water cooler or a custom loop, the Water-Cooling Compatible specification is crucial. Pay attention to the supported radiator sizes (e.g., 240mm, 280mm, 360mm) and their possible mounting locations (front, top, side). A 360mm radiator at the top is often a good choice as it exhausts warm air directly out of the case.

3. Design and Functional Layouts

Design is more than just aesthetics. Modern layouts offer tangible benefits:

• PC Case with Glass Window: Pillarless "fishtank" cases offer an unobstructed view of the hardware. Look for tempered glass for added safety.
• Dual Chamber Case: A dual-chamber layout thermally separates the motherboard and graphics card from the power supply and hard drives. This not only leads to a cleaner look, as cables are hidden in the second chamber, but can also improve the cooling of the main components.
• Colour and Materials: A White PC Case can create a very clean and modern aesthetic but may require more careful cleaning. The material quality of the steel, aluminium, and plastic determines the case's stability and tactile feel.

Recommended for Your Profile

Instead of making a one-size-fits-all recommendation, we have selected models that address specific needs and user profiles, cleverly avoiding the pitfalls mentioned earlier.

MATCH FOR: Performance Enthusiasts

NZXT H7 Flow Mid-Tower ATX Airflow PC Gaming Case

Why This Fits Their Persona: Ideal for users who prioritise maximum cooling and stable performance above all else. The focus is clearly on function without compromising on build quality.

How It Avoids the Trap

The fully perforated front and top panels completely bypass the "airflow trap," ensuring unrestricted airflow to core components.

Key Advantage & Pros

Supports large radiators (up to 420mm) and offers dedicated bottom fan mounts for direct GPU cooling.

MATCH FOR: Aesthetics-Focused PC Builders

MSI MAG PANO 100R PZ White ATX PC Case

Why This Fits Their Persona: Perfect for users who want to build a flawless "showcase PC" with minimal visible cables. The white design and panoramic view are the main attractions.

How It Avoids the Trap

The dual-chamber design and support for back-connect motherboards solve the problem of messy cable management that is often hidden behind a side panel.

Key Advantage & Pros

Enables an extremely clean interior via rear connectors and provides good out-of-the-box cooling with four pre-installed ARGB fans.

MATCH FOR: Budget-Conscious Beginners

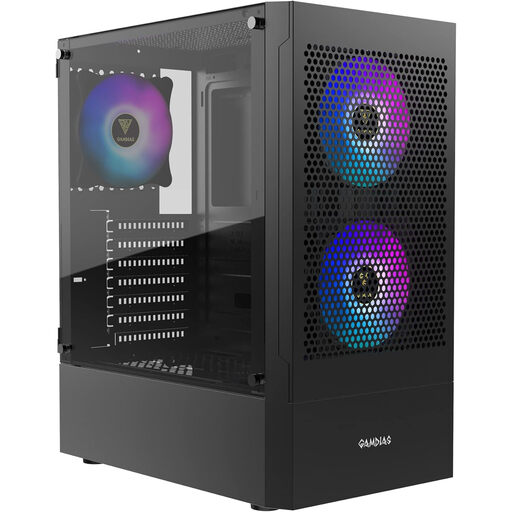

GAMDIAS Talos E3 MESH GAMING Miditower Black

Why This Fits Their Persona: A solid choice for first-time builders or users on a limited budget who still want good cooling performance and a modern look with glass and RGB.

How It Avoids the Trap

The 5.0mm perforated mesh front guarantees genuine airflow, avoiding the typical mistake of budget cases with restrictive front panels.

Key Advantage & Pros

Offers a great overall package in its price class with three pre-installed ARGB fans and a mesh front. The fans can be synchronised via a standard 5V header.

Frequently Asked Questions (FAQ)

1. How many case fans are really necessary? For a typical gaming system, a configuration with at least two intake fans at the front and one exhaust fan at the rear is a solid baseline. This creates directional airflow that pulls cool air over the components and expels warm air. High-end systems benefit from additional fans at the top or bottom.

2. Will any graphics card fit in any ATX case? No. Although the motherboard will fit, the length of the graphics card is the limiting factor. The top models from the NVIDIA 40-series and AMD 7000-series, in particular, are very long. Always compare the "maximum GPU length" specification of the case with the length of your graphics card. Plan for a few millimetres of buffer space.

3. What is the advantage of a dual-chamber case? A Dual Chamber Case divides the interior into two separate areas. The main chamber houses the heat-generating components like the motherboard, CPU, and GPU. The second chamber, usually behind the motherboard tray, accommodates the power supply, hard drives, and most of the cables. This results in a tidy appearance and can improve airflow in the main chamber as it is not obstructed by cable clusters.
