Choosing the right case fans is a critical factor for the performance and acoustics of any PC system. When using radiators for CPU or GPU cooling, specific fan characteristics are required. The goal is to combine high static pressure to overcome the air resistance of cooling fins with quiet operation and customisable aesthetics through aRGB lighting. This article analyses the technical parameters relevant to selecting NZXT RGB fans and presents specific models.
The evaluation of a fan is based on objective, measurable criteria. Understanding these parameters is fundamental to making an informed purchasing decision.
For use on radiators, high static pressure is the primary performance indicator.
The type of fan bearing directly impacts the noise profile and operational lifespan. A common and technically mature solution is the Fluid Dynamic Bearing (FDB). In this bearing type, contact between moving parts is minimised by a thin, pressurised film of oil. This leads to reduced friction and vibration, resulting in quieter operation and a longer lifespan.
PWM (Pulse Width Modulation) fans use a 4-pin connector that allows for precise digital control of the motor speed by the motherboard or a dedicated control unit. Unlike voltage-regulated DC control (3-pin), PWM allows for a wider control range, often from very low to maximum RPMs. This enables the creation of fine-grained fan curves that dynamically adjust cooling performance to system temperature, thus avoiding unnecessary noise at idle.
Traditionally, mounting two or three individual fans is required for 240mm, 280mm, or 420mm radiators. Each fan needs separate screws and cable management. A single-frame fan integrates multiple fan units into a single frame. This approach significantly reduces installation effort, as only one component needs to be positioned and screwed in. Furthermore, cable management is simplified because the fans are pre-wired internally, often with only one or two cables for power and RGB routed externally.
Based on the aforementioned technical criteria, we present two models from the NZXT F-Series Core, designed for different use cases.

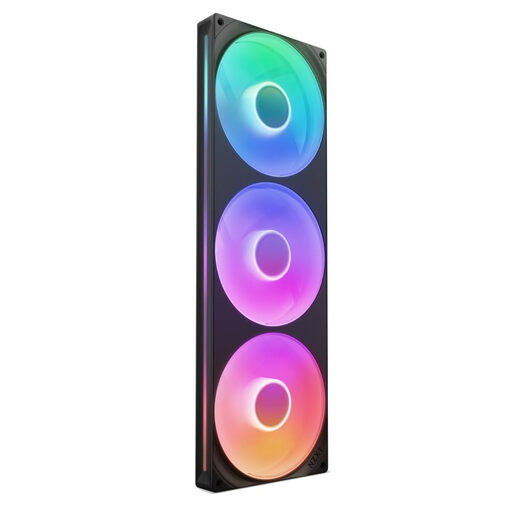

Why We Recommend This Product The NZXT F420 RGB Core unit is designed for high-end cooling systems that utilise 420mm radiators. The integration of three 140mm fans into a single frame directly addresses the challenges of mounting and wiring large cooling solutions. The fan blades are optimised for high static pressure to efficiently overcome the air resistance of large radiators. Speed and lighting can be controlled centrally via the NZXT CAM software or compatible motherboard headers.
Pros
Who It's For This model is ideal for PC builders and enthusiasts equipping a system with a 420mm radiator who value maximum cooling performance, a clean aesthetic, and straightforward installation.

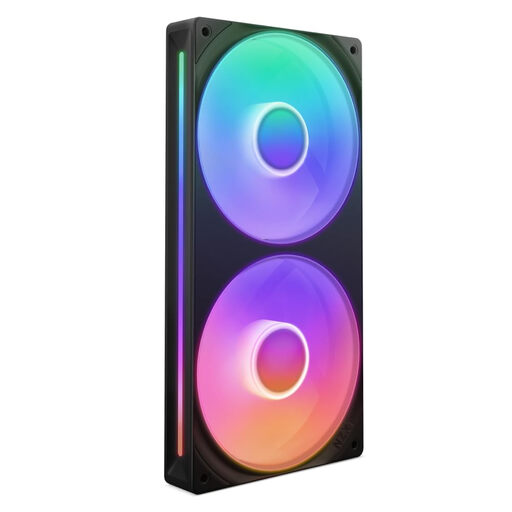

Why We Recommend This Product The NZXT F240 RGB Core is the more compact version for the widely used 240mm radiators. It combines two 120mm fans in one frame, offering the same benefits of simplified installation and reduced cable management as the larger model. The fans are engineered to strike a balance between high static pressure for radiators and good airflow for case ventilation. With 8 aRGB LEDs per fan and PWM control, it is a flexible solution for many common PC builds.
Pros
Who It's For This product is aimed at users with a 240mm AIO liquid cooler or corresponding case mounting points. It is ideal for those seeking an aesthetic and high-performance cooling solution with minimal installation effort.
The single-frame units presented here are optimised for standard radiator sizes. For custom configurations, replacing individual fans, or for mounting locations that do not permit a continuous frame, choosing separate fans may be more suitable. You can find a wide selection of components for various requirements in our Air Cooling category.
1. What is the difference between PWM and DC fans? PWM fans (4-pin) are digitally controlled via a pulse signal, which allows for precise speed regulation over a wide range without changing the voltage. DC fans (3-pin) are controlled by reducing the supply voltage, which limits the control range and can cause the fan to stall at very low voltages. For quiet PC fans and fine-grained control, PWM is the technically superior method.
2. Can I use NZXT RGB fans without an NZXT controller? Yes. The NZXT F-Series Core fans are designed for flexible connectivity. You can connect the 4-pin PWM plug to a fan header on your motherboard and the RGB connector (via an adapter) to a standard 5V ARGB header. Control is then managed through your motherboard manufacturer's software. However, for full functionality and centralised management within the NZXT ecosystem, an NZXT RGB & Fan Controller is recommended, which enables control via the NZXT CAM software.
3. Are NZXT RGB fans suitable for radiators? Yes, especially the F-Series Core models featured here. They were developed with a focus on high static pressure. This parameter is crucial for effectively pushing air through the dense fins of a radiator, ensuring optimal heat dissipation. Models like the F420 and F240 are therefore an excellent choice as radiator fans.
