AM5 M-ATX Motherboard Buyer's Guide and Recommendations

Choosing the right motherboard is the foundation of any PC build. With AMD's future-proof AM5 platform, users have a vast array of options. For those planning a compact yet powerful system, the Micro-ATX (M-ATX) form factor is a natural choice. These boards offer an excellent balance of size, features, and price.

This article serves as a guide for anyone looking for an AM5 M-ATX motherboard. We'll highlight key purchasing criteria and present a selection of models with specific features suited for different user profiles.

What to Look for When Buying an AM5 M-ATX Motherboard

The decision for a motherboard should be based on your individual requirements for performance, connectivity, and budget. Three aspects are particularly relevant.

1. Choosing the Right Chipset: B850 vs. B650

The chipset is a crucial factor in determining the motherboard's functionality. For the AM5 platform, the B-series chipsets are especially significant in the mid-range segment.

• B850 Motherboard: As the newer chipset, the B850 is specifically optimised for the Ryzen 9000 motherboard generation. It often provides a more modern baseline feature set, such as broader support for PCIe 5.0, which is relevant for future graphics cards and SSDs.
• B650 Motherboard: For those looking for a budget-friendly AM5 motherboard, the B650 offers a proven and cost-effective solution. With a BIOS update, many B650 boards also support the latest processors, providing a solid foundation for gaming and everyday applications. When you buy a B650 motherboard, you often get excellent value for money.

2. Connectivity for Current and Future Needs

A modern motherboard should be well-equipped for the years to come. Pay attention to the following standards:

• DDR5 Memory: The AM5 platform exclusively uses the new DDR5 motherboard standard, which allows for higher clock speeds and larger capacities. Check the maximum supported clock speed (in MHz) and the number of RAM slots (two or four).
• PCIe 5.0: The PCIe 5.0 standard doubles the bandwidth compared to PCIe 4.0. A PCIe 5.0 x16 slot is advantageous for future high-end graphics cards. An M.2 slot with a PCIe 5.0 connection enables extremely fast SSD speeds. The availability of PCIe 5.0 can depend on the CPU being used.
• Networking Standards: A 2.5G LAN port has become a good standard for fast wired connections. In the wireless domain, Wi-Fi 6E and the newer Wi-Fi 7 offer significant advantages in terms of speed and latency. A motherboard with WiFi 7 is particularly appealing for users who rely on a stable, high-speed Wi-Fi connection for online gaming or streaming and already have a compatible router.

3. Form Factor and Ports

The Micro-ATX motherboard AM5 form factor is ideal for compact cases. However, it's important to check the variety of ports. Verify the number of USB ports on the I/O panel, the internal headers for case USB (including Type-C), fan headers (CPU, system, water pump), and ARGB/RGB headers for controlling lighting.

Our Curated AM5 M-ATX Choices

Based on the criteria mentioned, we have compiled a selection of motherboards from the Colorful BATTLE-AX series that cover different requirements and budgets.

COLORFUL BATTLE-AX B850M-T WIFI V14

Why it stands out: This model positions itself as a solid, value-oriented entry into the world of B850 motherboards. It combines future-proof features like a PCIe 5.0 graphics card slot and a PCIe 5.0 M.2 slot with proven connectivity like Wi-Fi 6E and 2.5G LAN.

Advantages:

• Chipset: AMD B850, optimised for Ryzen 7000/8000/9000 processors
• Expansion Slots: 1x PCIe 5.0 x16 slot
• Storage: 1x M.2 slot with PCIe 5.0 x4 support (CPU-dependent), 1x M.2 PCIe 4.0 x4 slot
• Memory: 2x DDR5 slots, supporting up to 96 GB with frequencies up to 7200 MHz (OC)
• Networking: 2.5G LAN and Wi-Fi 6E

Who is it for? For PC builders looking for a well-balanced B850 motherboard with the most important future-proof features without breaking the bank. It's a great choice for mid-range gaming PCs built for longevity.

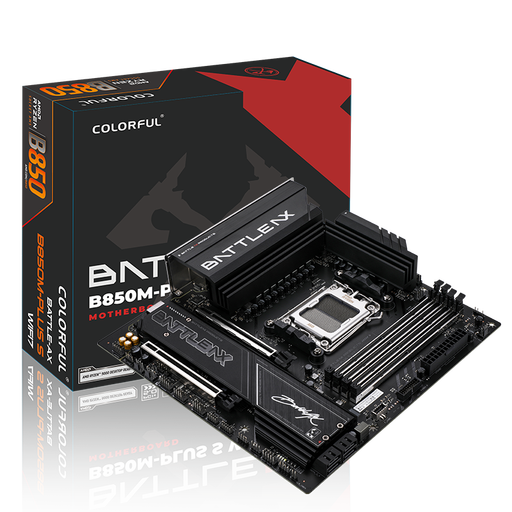

COLORFUL BATTLE-AX B850M-PLUS S WIFI7 V14

Why it stands out: This motherboard is aimed at users who value maximum connectivity and memory expansion. With four DDR5 slots, Wi-Fi 7, and a 5G LAN port, it is perfectly equipped for demanding network applications and multitasking.

Advantages:

• Chipset: AMD B850
• Memory: 4x DDR5 slots, supporting up to 192 GB with frequencies up to 8000 MHz (OC)
• Networking:5G LAN and Wi-Fi 7 with Bluetooth 5.4
• Ports: Comprehensive I/O including USB 3.2 Gen 2 Type-A and Type-C
• Expansion Slots: 1x PCIe 5.0 x16 slot and an additional PCIe 4.0 x4 slot

Who is it for? For power users and enthusiasts looking for a compact Micro-ATX motherboard AM5 with maximum features. Anyone who depends on the fastest available networking technologies and plans to equip their system with a large amount of RAM will find a suitable platform here.

COLORFUL BATTLE-AX B650M-E WIFI V14

Why it stands out: This model is a prime example of a budget-friendly AM5 motherboard. It uses the proven B650 chipset and offers all the core features of the AM5 platform, such as DDR5 support and PCIe 4.0, at a very accessible price.

Advantages:

• Chipset: AMD B650, compatible with Ryzen 7000/8000/9000 series (may require a BIOS update)
• Value for Money: Offers a cost-effective entry into the AM5 world
• Memory: 2x DDR5 slots, supporting up to 96 GB with frequencies up to 7600 MHz (OC)
• Storage: 2x M.2 slots with PCIe 4.0 x4 connection
• Networking: Gigabit LAN and Wi-Fi 6

Who is it for? For budget-conscious users and beginners building their first AM5 PC. It provides a solid foundation for gaming and everyday tasks without burdening the budget with features that may not be needed, such as PCIe 5.0 or multi-gigabit LAN.

Discover More Options

If our recommendations don't include the perfect model for your system, you can find more alternatives in our extensive range of PC Components.

Frequently Asked Questions (FAQ)

Is a B850 Motherboard Necessary for Ryzen 9000 Processors?

Not necessarily, as B650 and X670 motherboards can also be made compatible via a BIOS update. However, a B850 motherboard often offers optimised native support and more modern connectivity options tailored to the new processor generation.

Is a Motherboard with WiFi 7 Worth the Extra Cost?

A motherboard with WiFi 7 is a future-proof investment. If you already own or plan to buy a Wi-Fi 7 router and depend on extremely low latencies, the extra cost can be worthwhile. For most current applications, however, Wi-Fi 6/6E is sufficient. Note that according to manufacturer specifications, the full functionality of Wi-Fi 7 under Windows 11 requires version 24H2 or newer.

What Are the Advantages of a Micro-ATX AM5 Motherboard Over an ATX Board?

The main advantage of a Micro-ATX motherboard AM5 is its more compact form factor, which allows for building smaller, space-saving PC systems. Despite their smaller size, they typically offer a sufficient number of ports and expansion slots for most gamers and home users and are often more affordable than their larger ATX counterparts with comparable features.
